HAIWELL CBOX

IoT Cloud Box =  IoT Gateway + DTU + HMI (Use mobile as local screen)
● Integrated functions as IoT gateway + DTU + HMI all in one, saving cost and space. Small box, big use.

● No need to develop the remote control interface twice, all projects are developed at one time, what you see is what you get. The display screen can be directly monitored through the mobile phone/PC terminal instead of the HMI screen, and the control is flexible and convenient.

● Support MQTT protocol. It can be connected to database server/ERP/MES and other systems to easily realize data collection and reporting. Support millions of terminal concurrent networks.

Haiwell IoT Cloud Box

● A non-screen Haiwell IoT Cloud HMI, integrated HMI function

● Built-in Haiwell Cloud engine, integrated Haiwell Cloud service, support Cloud and mobile accessing control

● can directly monitor the display screen through mobile or PC side instead of the HMI screen. More flexible and convenient.

● Support A/B Key security mechanism, multi-unit network, database, multi-screen interaction, Cloud camera remote monitoring and other functions

● Directly use Haiwell Cloud SCADA software for programming and management

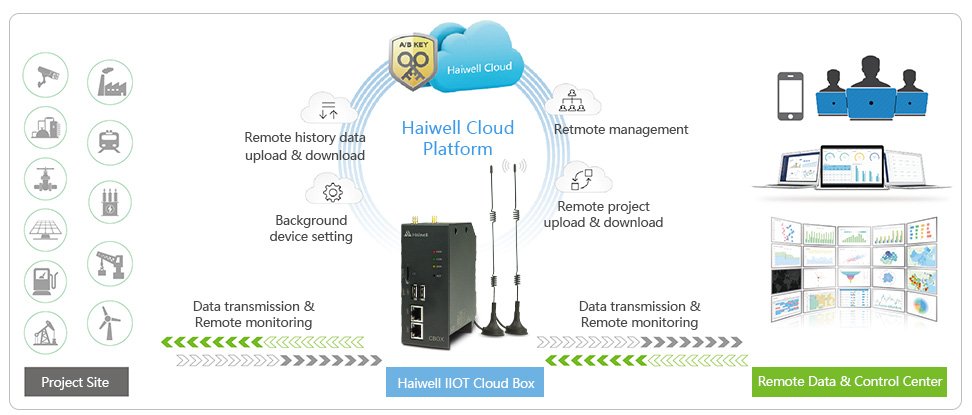

● Implement remote real-time viewing and monitoring equipment by Haiwell Cloud through Ethernet/WIFI/4G,

● 2 Ethernet interfaces, support star, tree and bus Ethernet networking

● Supports the MQTT protocol, supports access to database server, easily implements data collection and reporting, and connects to ERP/MES systems.

● Support for edge calculation. Edge computing through scripting engines which built into the terminal, function operations, and interaction with device data

● Support for multiple third-party protocols. Built-in a variety of industrial equipment drivers, support the current mainstream PLC, inverter, instrument

● Support Cloud transparent transmission. Remote programming, upload&download, firmware upgrade, diagnostics, monitoring and debugging of PLC programs to detect abnormal conditions at any time
